DOOR SERIES

Explore our diverse range of aluminum manufacturing doors

LIFT SLIDING DOOR SERIES

Series No. OSW-76D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: Double track 136 mm / Three track 204 mm
● Fan width: 53.7/76 mm
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 39 mm
● Insulation strip width: 14.8 mm

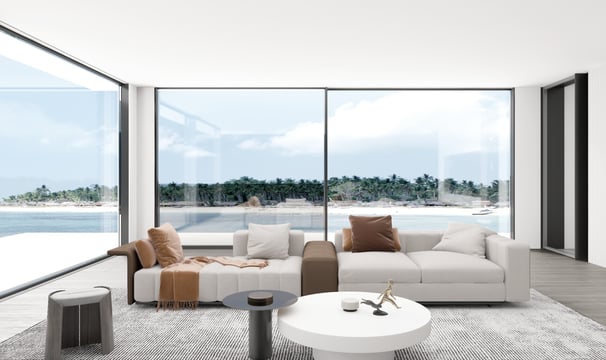

PANORAMIC SLIDING DOOR SERIES

Series No. OSW-150D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.5 mm
● Border width: 150 mm
● Fan width: 50/24 mm
● Glass standard: double-layer tempered hollow 5 mm + 18 A + 5 mm
● Glass notch: 38 mm
● Insulation strip width: 14.8 mm

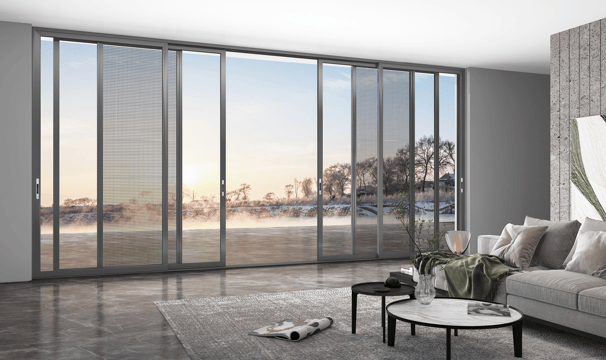

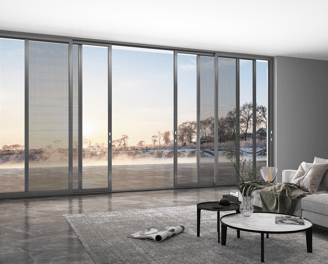

NARROW STRIP MOSQUITO NET SLIDING DOOR SERIES

Series No. OSW-45D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: Double track 120 mm / Three track 180 mm
● Fan width: 45/56 mm
● Glass standard: double-layer tempered hollow 5 mm + 22 A + 5 mm
● Glass notch: 34 mm
● Process treatment: Fluorocarbon spraying process

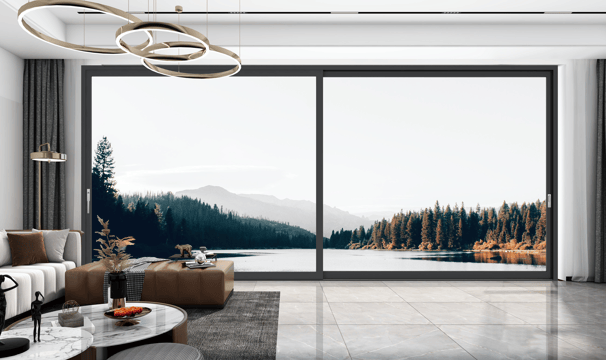

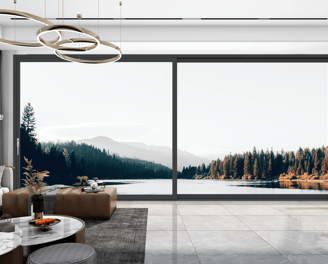

DOUBLE DISPLACEMENT SEALED SLIDING DOOR SERIES

Series No. OSW-G41D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 148 mm
● Fan width: 30/48 mm
● Glass standard: double-layer tempered hollow 5 mm + 15 A + 5 mm
● Glass notch: 27 mm
● Process treatment: Fluorocarbon spraying process

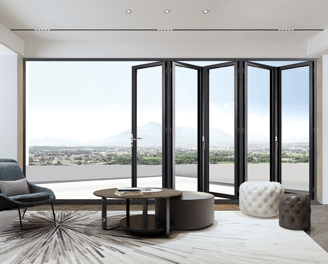

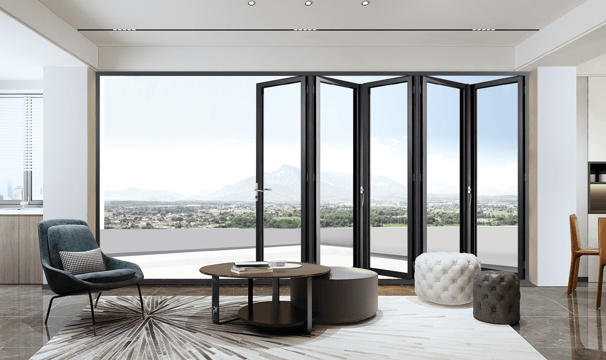

FOLDING DOOR SERIES

Series No. OSW-75D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 75 mm
● Fan width: 68 mm
● Glass standard: double-layer tempered hollow 5 mm + 12 A + 5 mm
● Glass notch: 22 mm
● Process treatment: Fluorocarbon spraying process

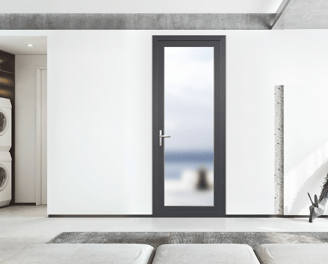

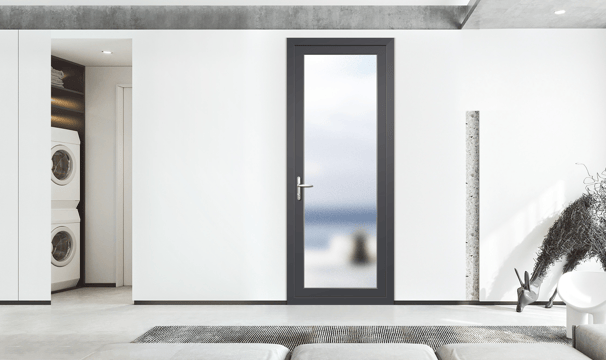

OUTDOOR SWING DOOR SERIES

Series No. OSW-68D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 68 mm
● Fan width: 100 mm
● Glass standard: double-layer tempered hollow 5 mm + 12 A + 5 mm
● Glass notch: 24 mm
● Process treatment: Fluorocarbon spraying process

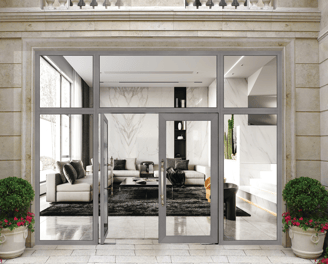

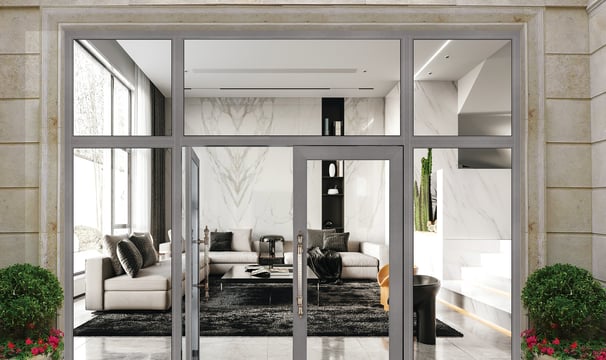

GROUND SPRING DOOR SERIES

Series No. OSW-120D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 120 mm
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 30 mm
● Process treatment: Fluorocarbon spraying process
