Aluminum Manufacturing Products

WINDOW SERIES

Explore our diverse range of aluminum manufacturing windows

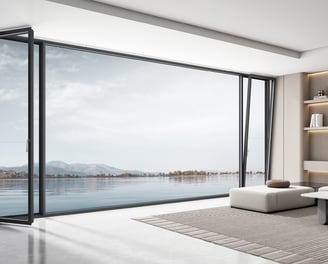

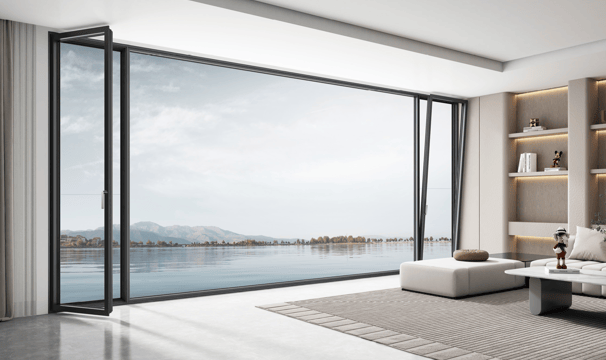

THERMAL BREAK INTERNAL FLAT WINDOW SERIES

Series No. OSW-70W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.4 mm
● Border width: 70.5 mm
● Fan width: 67 mm (including pressure line)
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 36.5 mm
● Insulation strip width: 30 mm

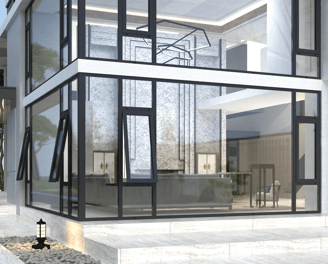

EXTERNAL HANGING WINDOW SERIES

Series No. OSW-50W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8mm
● Border width: 50mm
● Fan width: 52mm
● Glass standard: double-layer tempered hollow 5mm+12A+5mm
● Glass notch: 22mm

DOOR SERIES

Explore our diverse range of aluminum manufacturing windows

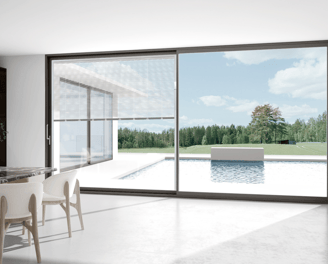

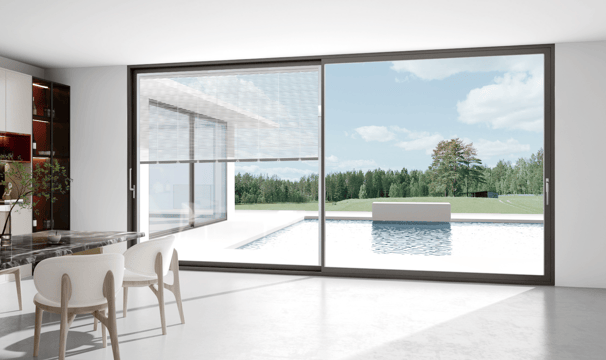

LIFT SLIDING DOOR SERIES

Series No. OSW-76D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: Double track 136 mm / Three track 204 mm
● Fan width: 53.7/76 mm
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 39 mm
● Insulation strip width: 14.8 mm

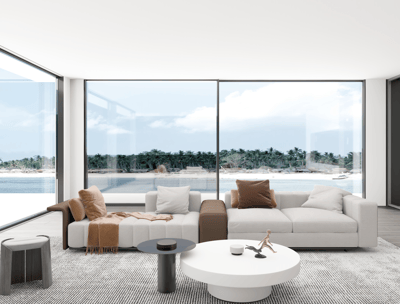

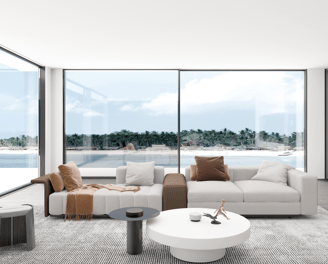

PANORAMIC SLIDING DOOR SERIES

Series No. OSW-150D

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.5 mm
● Border width: 150 mm
● Fan width: 50/24 mm
● Glass standard: double-layer tempered hollow 5 mm + 18 A + 5 mm
● Glass notch: 38 mm
● Insulation strip width: 14.8 mm

SUNROOM SERIES

Explore our diverse range of aluminum manufacturing windows

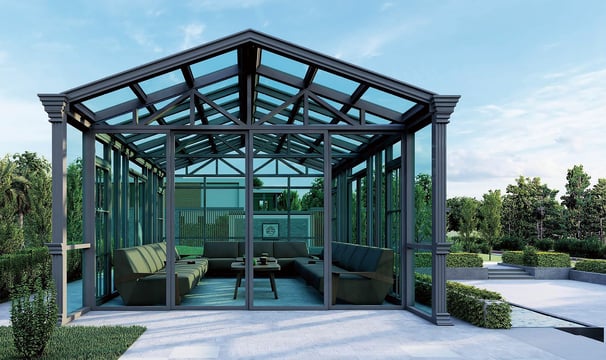

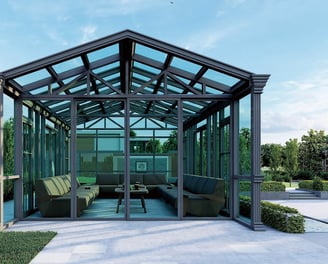

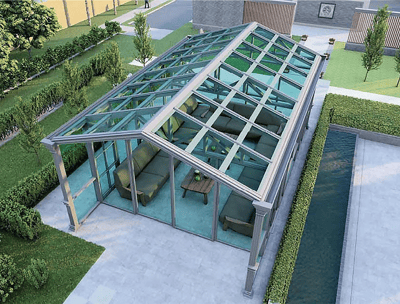

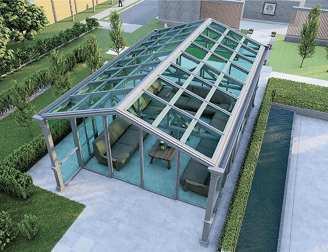

SUNROOM SERIES

Series No. OSW-120SR

● Profile: 6063-T5 raw aluminum material
● Process treatment: Fluorocarbon spraying process
● Aluminum profiles in the load-bearing part are 3.0 mm thickness.
● The roof can be equipped with an electric skylight ventilation system.

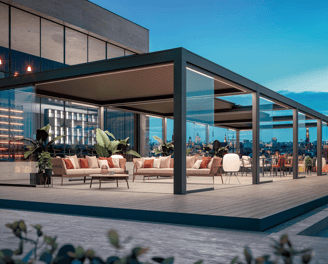

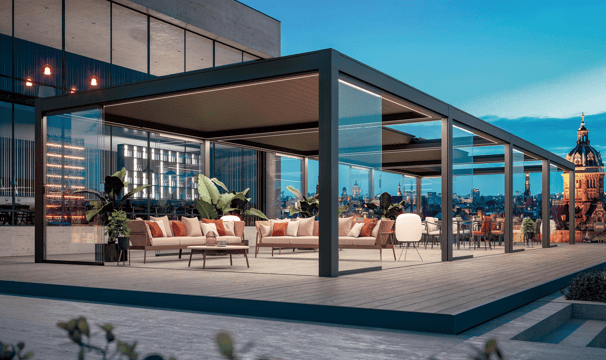

ELECTRIC SLIDING SUNROOM SERIES

Series No. OSW-ESR

● The load-bearing section of the sunroom is made of 3.0 wall thickness profiles, with a sturdy and aesthetically pleasing structure.
● Perfect component structure, making no visible link traces on the surface.
● The roof can be equipped with an electric skylight ventilation system.
