Window Series

WINDOW SERIES

Explore our diverse range of aluminum manufacturing windows

THERMAL BREAK INTERNAL FLAT WINDOW SERIES

Series No. OSW-70W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.4 mm
● Border width: 70.5 mm
● Fan width: 67 mm (including pressure line)
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 36.5 mm
● Insulation strip width: 30 mm

EXTERNAL HANGING WINDOW SERIES

Series No. OSW-50W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8mm
● Border width: 50mm
● Fan width: 52mm
● Glass standard: double-layer tempered hollow 5mm+12A+5mm
● Glass notch: 22mm

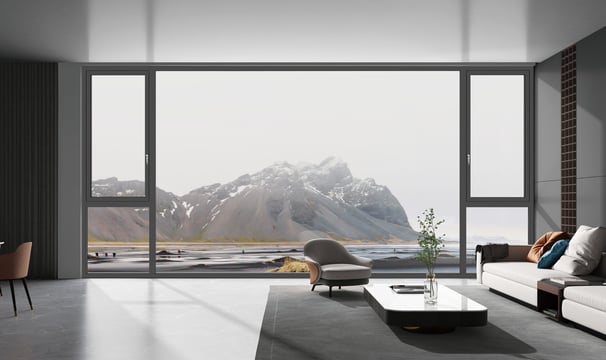

THERMAL BREAK INTERNAL FLAT WINDOW SERIES

Series No. OSW-88W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8mm
● Border width: 88 mm
● Fan width: 44 mm
● Glass standard: Three glass, two cavity 5 mm + 9 A + 5 mm
● Glass notch: 39 mm

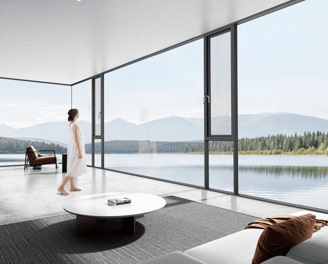

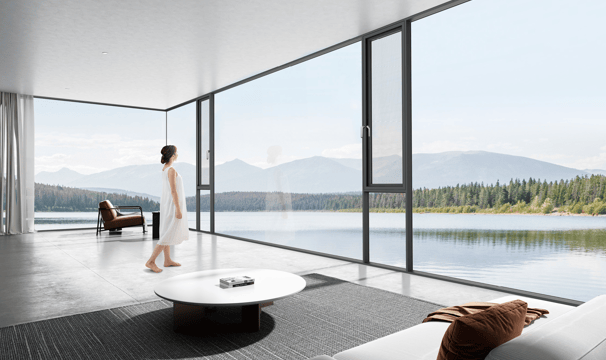

ANTI TYPHOON EXTERNAL WINDOW SCREEN INTEGRATED SERIES

Series No. OSW-115W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 115 mm
● Fan width: 72 mm (including pressure line)
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 35 mm

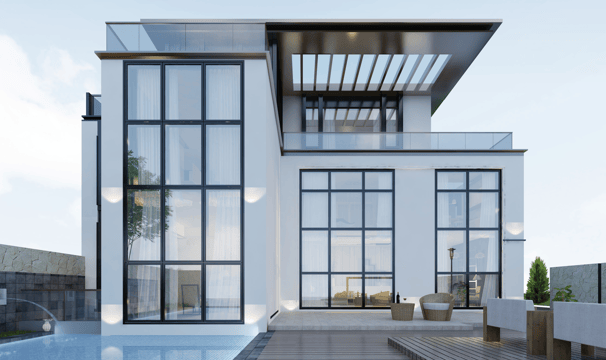

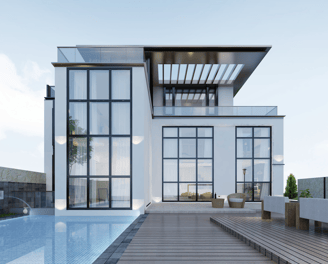

CURTAIN WALL AND WINDOW SCREEN INTEGRATED SERIES

Series No. OSW-150W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: 110 mm
● Fan width: 75 mm (including pressure line)
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 33 mm

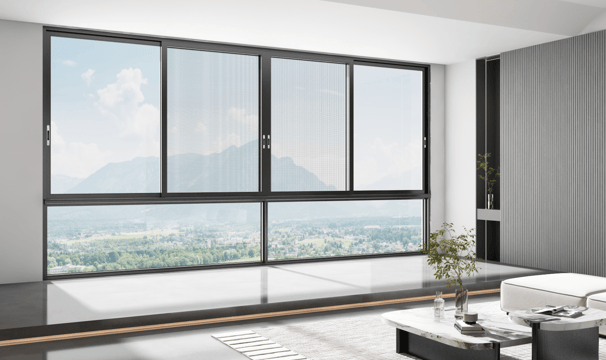

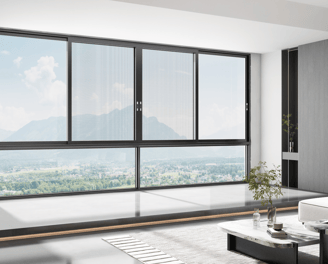

SLIDING WINDOW SERIES

Series No. OSW-110W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: 110 mm
● Fan width: 64 mm
● Glass standard: double-layer tempered hollow 5 mm + 12 A + 5 mm
● Glass notch: 23 mm

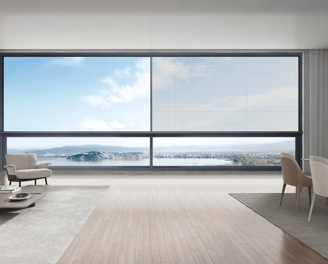

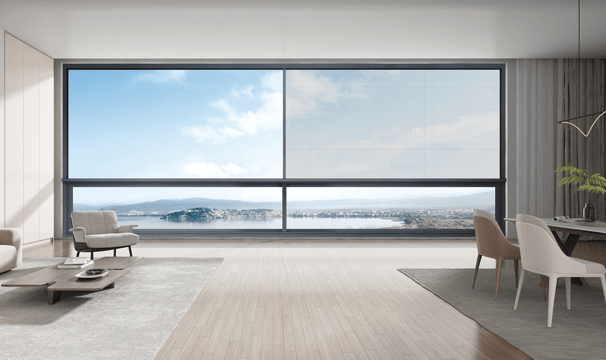

NARROW SLIDING WINDOW SERIES

Series No. OSW-128W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 128 mm
● Fan width: 30/48 mm
● Glass standard: double-layer tempered hollow 5 mm + 15 A + 5 mm
● Glass notch: 27 mm

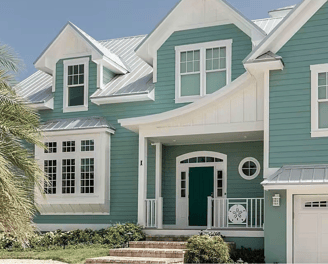

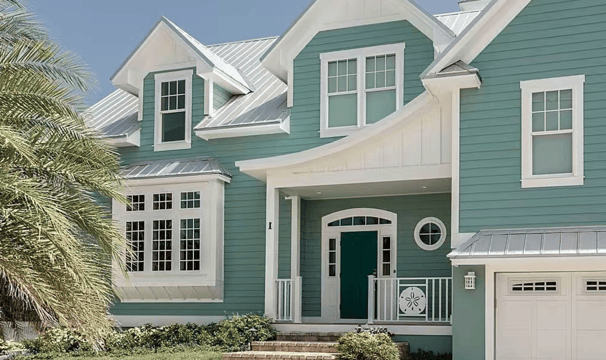

PULL UP WINDOW SERIES

Series No. OSW-83W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.5 mm
● Border width: 83 mm
● Fan width: 41 mm
● Glass standard: double-layer tempered hollow 5 mm + 9 A + 5 mm
● Glass notch: 19 mm

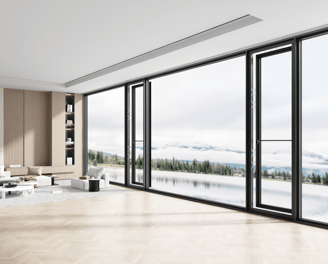

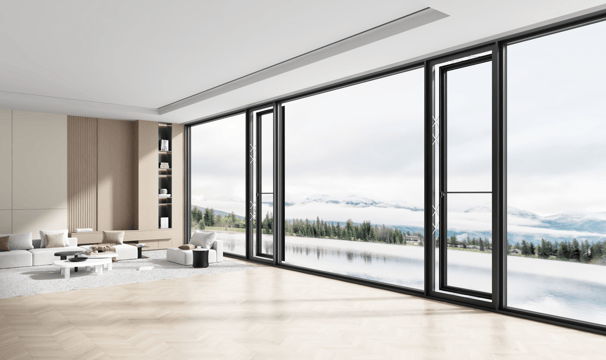

FLAT SLIDING WINDOW SERIES

Series No. OSW-118W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: 118 mm
● Fan width: 55 mm
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 40 mm

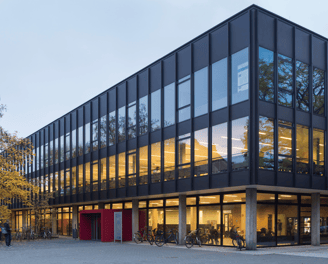

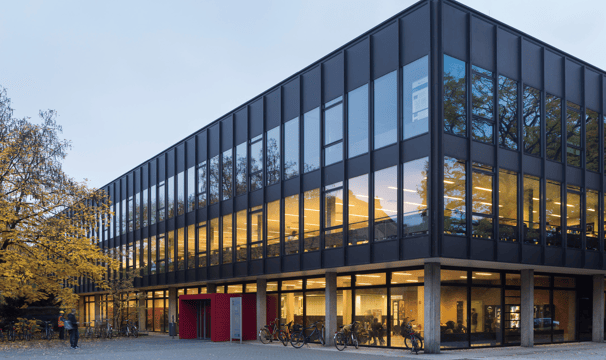

CURTAIN WALL SERIES

Series No. OSW-68W

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm
● Border width: 68 mm
● Fan width: 65 mm
● Glass standard: double-layer tempered hollow 5 mm + 12 A + 5 mm
● Glass notch: 24 mm
