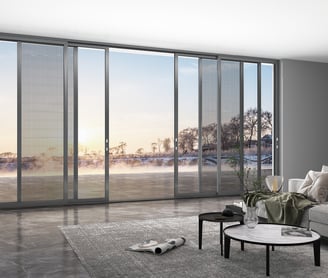

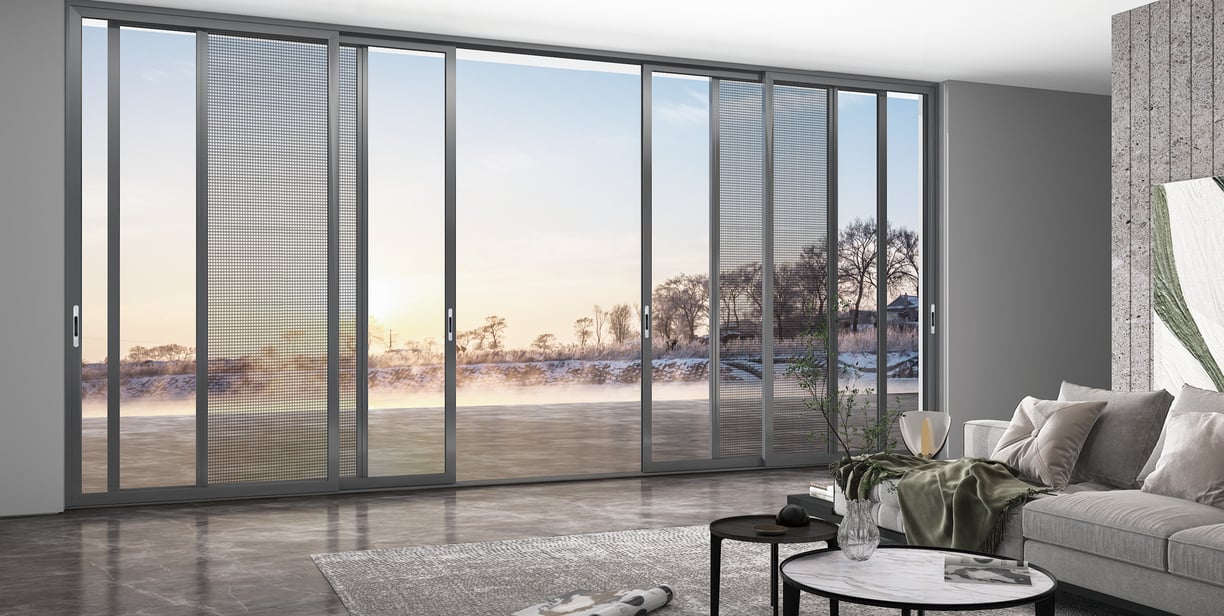

NARROW STRIP MOSQUITO NET SLIDING DOOR SERIES

PRODUCT PARAMETER

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm

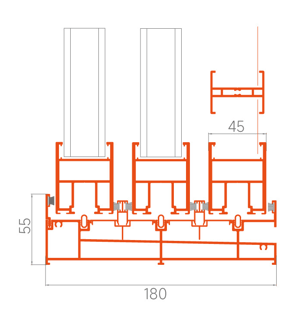

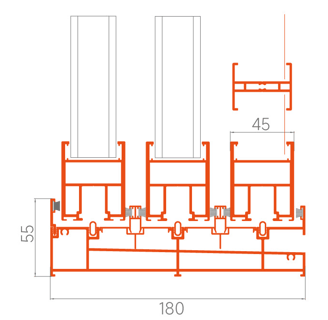

● Border width: Double track 120 mm / Three track 180 mm
● Fan width: 45/56 mm
● Glass standard: double-layer tempered hollow 5 mm + 22 A + 5 mm
● Glass notch: 34 mm
● Process treatment: Fluorocarbon spraying process
● Product Color: Fluorocarbon Grey, Skin Black, Skin White, Fluorocarbon Coffee

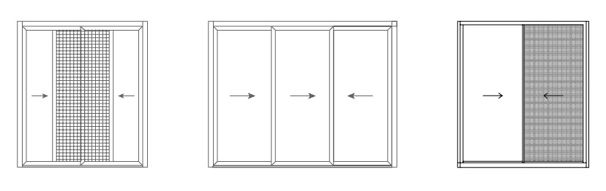

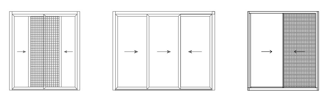

OPENING MODE

EPDM(EPDM) sealing strip, strong weather resistance, environmental protection, no odor, with excellent watertight and airtight performance
