OUTDOOR SWING DOOR SERIES

PRODUCT PARAMETER

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 2.0 mm

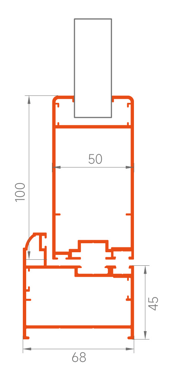

● Border width: 68 mm
● Fan width: 100 mm
● Glass standard: double-layer tempered hollow 5 mm + 12 A + 5 mm
● Glass notch: 24 mm
● Process treatment: Fluorocarbon spraying process
● Product Color: Fluorocarbon Grey, Skin Black, Skin White, Fluorocarbon Coffee

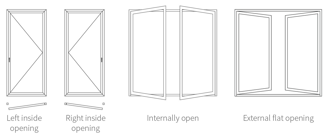

OPENING MODE

EPDM(EPDM) sealing strip, strong weather resistance, environmental protection, no odor, with excellent watertight and airtight performance
