CURTAIN WALL AND WINDOW SCREEN INTEGRATED SERIES

PRODUCT PARAMETER

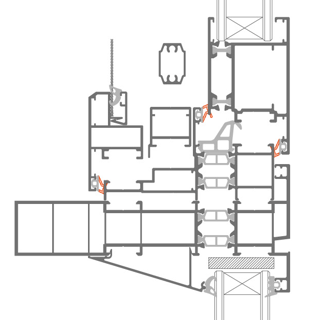

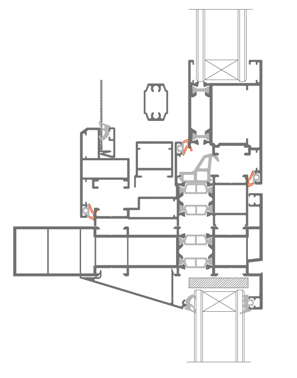

● Profile: 6063-T5 raw aluminum material
● Wall thickness: 1.8 mm
● Border width: 150 mm
● Fan width: 75 mm (including pressure line)
● Glass standard: double-layer tempered hollow 5 mm + 20 A + 5 mm
● Glass notch: 33 mm
● Insulation strip width: 20 mm
● Sealing strip: EPDM sealing strip
● Process treatment: Fluorocarbon spraying process
● Product Color: Fluorocarbon Grey, Skin Black, Skin White, Fluorocarbon Coffee
